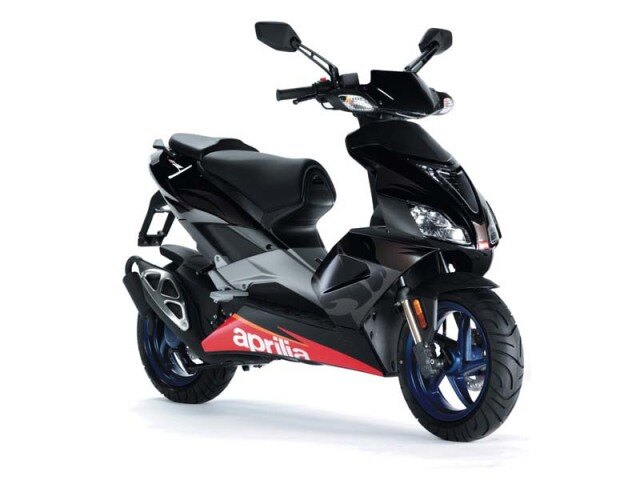

Photographs, technical data, specifications and colours refer to the Italian market version and may be subject to change without prior notice. For detailed information on the technical characteristics of the vehicle sold in your country, contact an Aprilia dealer .

Engine
Liquid cooled horizontal single cylinder two stroke. Electronic direct fuel injection.

Bore and stroke
40 x 39.3 mm.

Displacement
49 cc.

Compression ratio
11.5 : 1.

Air-oil mix aspiration
Reed valve.

Fuel injection
Electronically controlled, air assisted, direct injection into the combustion chamber.

Injector type
EFI low flow injector.

Direct injection system
External opening, SMD 8 micron medium spray.

Pressure regulator
Pressure differential maintained at 2.5 bar.

Throttle body
Ø 18 mm throttle body with integrated TPS (Throttle Position Sensor).

Air compressor
Driven off crankshaft, lubricated by air-oil mix in crank chamber.

Fuel pump
6.5 – 8 bar, high pressure pump with low electrical power absorption, < 0.5 A.

Electronic Control Unit
8 Hz clock speed, 22 pin.

Ignition
High power inductive ignition.

Starting
Electric.

Generator
Flywheel-magneto, 165 W – 12 V.

Lubrication
Oil injection with oil pump.

Oil tank capacity
1.2 litres (0.2 litre reserve).

Gearbox
Continuous automatic variator.

Clutch
Automatic centrifugal dry clutch.

Primary drive
V belt.

Final drive
Gears in oil bath.

Frame
Split single cradle frame in high tensile strength steel tube.

Front suspension
Hydraulic fork, 90 mm wheel travel.

Rear suspension
Engine unit acting as swingarm; frame linkages on two radial silent block mountings; wheel travel 70 mm.
Rear: 190 mm stainless steel disc; racing caliper with twin opposed 30 mm pistons.

Wheels
Five spoke, light alloy wheels front and rear: 3.50 x 13".

Tyres
Tubeless.
Front and rear: 130/60 x 13”.

Dimensions
Overall length: 1860 mm
Overall width: 705 mm
Overall height: 1120 mm
Seat height: 820 mm
Wheelbase: 1290 mm

Tank capacity
7 litres.

Accessories
- 32 litre New Concept top box (in matching paintwork or standard black finish) with optional backrest
- racing rear monoshock
- rear luggage rack for 32 litre New Concept top box
- large windshield
- sports windshield
- front footrest spoilers
- side stand
