Colours, specifications and technical data may be subject to change without prior notice.

Engine
Horizontal, single cylinder, 4 stroke.
Forced liquid cooling with centrifugal pump.
4 valve head with overhead camshaft

Fuel
Unleaded petrol

Bore and stroke
72 x 60 mm (72 x 48.6 mm) (57 x 48.6 mm)

Displacement
244,29 cc (197.9 cc) (124 cc)

Compression ratio
11:1

Maximum power
22.5 CV at 8000 rpm – 16.5 KW
(18.9 CV at 8500 rpm – 13.9 KW)
(14.5 CV at 9500 rpm – 10.6 KW)

Maximum torque
21 Nm a 6.250 rpm
(19 Nm a 6.500 rpm)
(11.7 Nm a 7.500 rpm)

Fuel system
Electronic fuel injection
(Carburettor Æ29) (Carburettor Æ29)

Ignition
Electronic inductive discharge ignition with variable advance

Starting
Electric

Alternator
300 W

Lubrication
Wet sump. Forced circulation with mechanical pump

Gearbox
Automatic torque converter

Clutch
Automatic centrifugal dry clutch

Primary drive
V belt

Final drive
Gearbox

Frame
Open cradle in high tensile strength steel

Front suspension
Hydraulic telescopic fork with 35 mm stanchions. Wheel travel 100 mm

Rear suspension
Engine unit acting as swinging arm. Double hydraulic shock absorber with adjustable preload. Wheel travel 80 mm

Brakes
Front: Twin Æ 260 mm stainless steel discs. (Æ 260 mm stainless steel disc)
Twin piston floating callipers
Rear: Æ 220 mm stainless steel disc

Wheels
Light alloy
Front: 2.75 x 15”
Rear: 3.00 x 15”

Tyres
Tubeless.
Front: 120 / 70 x 15”
Rear: 130 / 80 x 15"

Dimensions
Maximum length: 1,985 mm
Maximum width: 880 mm (at mirrors)
Wheelbase: 1,360 mm
Seat height; 815 mm

Dry weight
148 kg

Tank capacity
9 litres - reserve 1.5 litres
(9.5 litres - reserve 1.5 litres)

Exhaust
Euro 3

Max Speed
128 (117) (105) km/h

Accessories

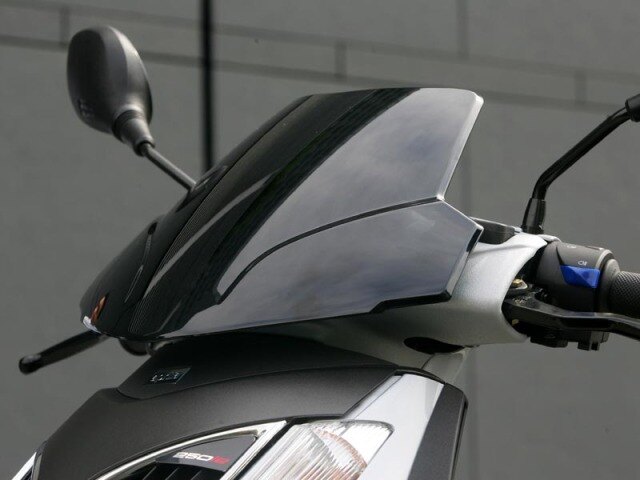

28 litre top box, 32 litre top box, 35 litre top box, large windshield, sports windshield, leg cover
