ROLLER

• Rear roller pin adjustment
• Rear levelling bar with mechanical central adjuster installed on the roller

SEED DRILL

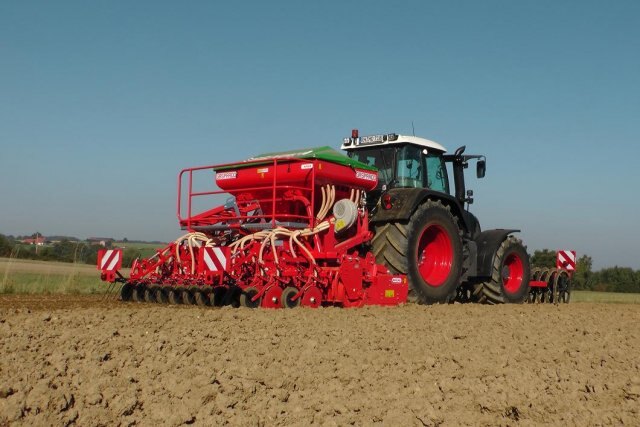

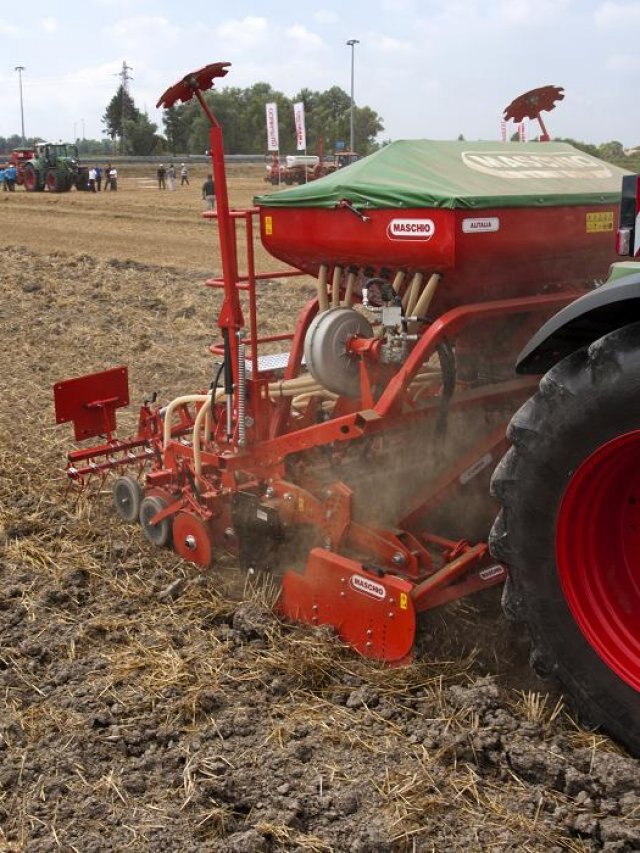

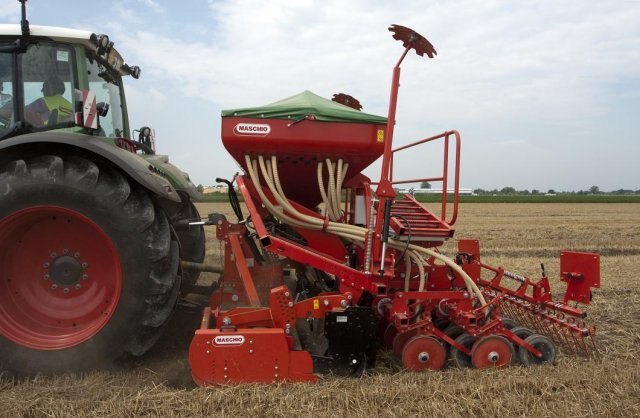

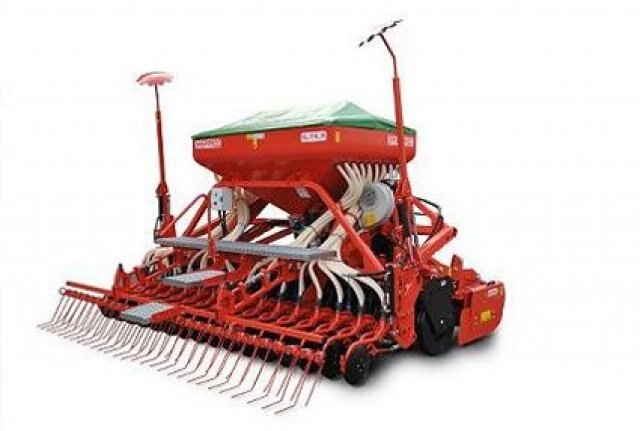

• Pneumatic seed drill with centralized distributor and pneumatic delivery
• Electric distributor drive - GENIUS LITE system
• GPS Speed detection device
• Hydraulic fan drive tractor dependent
• Centralized hydraulic tensioning of the sowing bar
• Hopper with window for seed level check
• Quick hitch for MASCHIO power harrow
• Calibration and emptying tray
• Inspection footboard with ladder
• Parking stands
• Seed covering harrow multi control
• Hopper capacity: 1500 l
• Hydraulic distributors required from tractor: from 2 to 3

DOSING ROLLERS: G1000 mounted, F25-125 and N500 supplied

• Lighting kit (disassembled)
• Warning boards (disassembled)
• Row marker (not included)

Hydraulic lifting of seed drill

It is possible to lift hydraulically the seed drill when only the power harrow tillage is necessary.

Hydraulic coulter bar tensioning

The pressure of planting unit is easily regulated from the cab by hydraulic pistons.

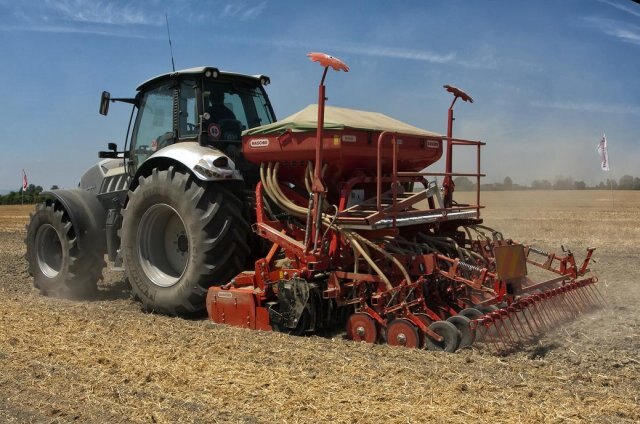

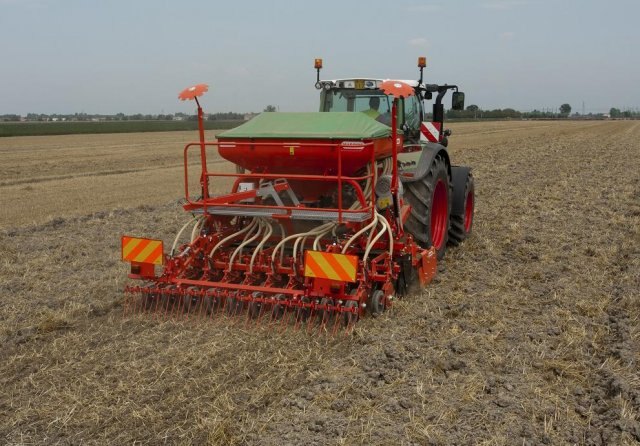

Different cover harrows

Different models of elastic tooth and different systems to modify the cover harrow height are proposed.

The STANDARD tooth is normally applied to on in-line seed drills and it is indicated for tilled soils.

The SOFT tooth has less aggressive spring and tooth inclination to avoid clogging. This version is recommended for no-tilled soil with many crop residues.

The regulation of cover harrow height occurs by pins as standard while multiple adjustment with a continuous cylinder is optional.

PERFECTA™ new double disc seeding bar

PERFECTA™ is a new double disc seeding bar for cereal and rape. Depth control and down pressure are adjusted independently.

Main features and innovations are:

• double staggered big disc (14'' 1/2 of diameter) with integrated internal steel scraper and heavy duty sealed hub
• opposite staggered design on front and rear ranks prevent from drifting working on slopes
• 13" x3” rear wheels to set seeding depth and to improve seed-soil contact
    parallelogram unit guarantees great vertical excursion (+ 6" from the zero)
    the two ranks are 23" spaced to prevent from clogging working on heavy and muddy soils or at high speed
    even seeding depth control from 0 to 3" can be easily adjusted
    centralized seeding bar down pressure adjustment can be set while working


Wide range of planting units

1 Coulter boot: indicated for sowing in tilled and stony soils without crop residues. Each component getting in contact with soil is made of long lasting materials and are easily replaceable.

2 INOX steel disc: recommended for seeding on tilled and no-tilled soils even with straws. Discs are keep cleaned by double mud scraper. Each disc is equipped with sealed bearing that does not require lubrication and maintenance.

3- Double boron steel made COREX discs: suggested to work on tilled soils with crop residues. By their exclusive camber, these discs make easy sowing depth control. Each disc is equipped with sealed bearing that does not require lubrication and maintenance.

No seed waste

The exceeding seed, consequence of row exclusions by TRAM LINE, comes back to the distributor even with the full hopper.

Perfect combination with the QUICK-MATCH system

QUICK-MATCHTM is the connection system for fix, combi power harrows and seed drills. Plastic buffers are applied on the power harrow roller in order to shift the seeder load to the roller. This equipment avoids damages on stony soils and keeps constant the sowing depth even on hilly soils.
